Model YT-206
Material: Alloy Steel; Stainless Steel
Capacity: 10~1000kg
Special Features: weld seal, tension and compression;
anti-overload, fatigue and deflective;
Application: belt scale, hopper scale, etc.
Technical Data -
|
Capacity
|
kg
|
10~200; 300~1000
|
|
Sensitivity
|
mV/V
|
2.0±0.01
|
|
Linearity error
|
%FS
|
±0.02
|
|
Hysteresis error
|
%FS
|
±0.02
|
|
Repeatability error
|
%FS
|
±0.01
|
|
Creep
|
%FS(5min)
|
±0.02
|
|
Zero output
|
%FS
|
±1
|
|
Temperature effect on zero
|
%FS/10℃
|
±0.02
|
|
Temperature effect on sensitivity
|
%FS/10℃
|
±0.02
|
|
Input resistance
|
Ω
|
385±10
|
|
Output resistance
|
Ω
|
350±3
|
|
Insulation resistance
|
MΩ
|
≥5000
|
|
Reference excitation voltage
|
V(DC/AC)
|
10
|
|
Compensated temperature range
|
℃
|
-10~＋50
|
|
OperatingTemperatureRange
|
℃
|
-20~＋60
|
|
Safe overload
|
%FS
|
120
|
|
Cable
|
Φ5mm×5m
Input：Red(＋) Black(－)
Output：Green(＋) White(－)
|

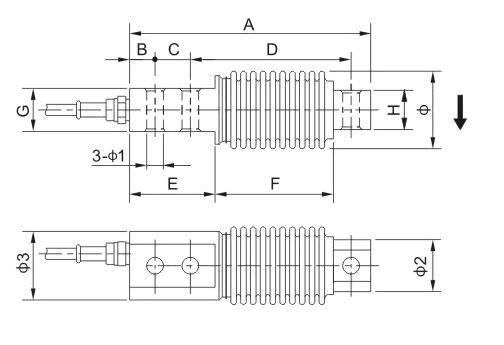

Dimensions -
|
量程
Capacity
Kg
|
尺寸 Size mm
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Φ
|
Φ1
|
Φ2
|
Φ3
|
|
10-200
|
123.0
|
13.0
|
18.0
|
82.0
|
46.0
|
58.0
|
22.0
|
20.0
|
41.0
|
8.5
|
26.0
|
35.0
|
|
300-1000
|
210.0
|
15.0
|
40.0
|
133.0
|
91.0
|
66.0
|
34.0
|
25.0
|
56.0
|
13.0
|
36.0
|
50.0
|
