Model YT-201B
Material: Alloy Steel; Stainless Steel
Capacity: 0.5t~10t
Special Features: Simple to install, easy to use, interchangeable,
Application: ultrathin truck scale, one-track crane scale,
hopper scale, etc.
Technical Data -
|
Capacity
|
t
|
0.5~2; 5; 10; 20
|
|
Sensitivity
|
mV/V
|
2.00±0.01
|
|
Linearity error
|
%FS
|
±0.02
|
|
Hysteresis error
|
%FS
|
±0.02
|
|
Repeatability error
|
%FS
|
±0.01
|
|
Creep
|
%FS(5mins)
|
±0.02
|
|
Zero output
|
%FS
|
±1.0
|
|
Temperature effect on zero
|
%FS/10℃
|
±0.02
|
|
Temperature effect on sensitivity
|
%FS/10℃
|
±0.02
|
|
Input resistance
|
Ω
|
385±10
|
|
Output resistance
|
Ω
|
350±3
|
|
Insulation resistance
|
MΩ
|
≥5000
|
|
Reference excitation voltage
|
V(DC/AC)
|
10
|
|
Compensated temperature range
|
℃
|
-10~＋50
|
|
OperatingTemperatureRange
|
℃
|
-20~＋60
|
|
Safe overload
|
%FS
|
120
|
|
Cable
|
Φ5mm×6m(10m)
Input：Red(＋) Black(－)
Output：Green(＋) White(－)
|

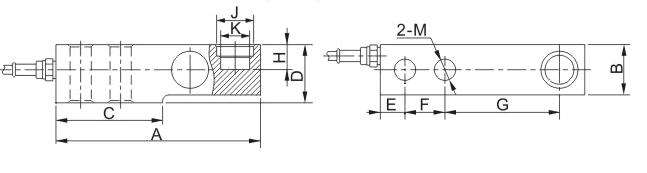

Dimensions -
|
量程
Capacity
t
|
尺寸 Size mm
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
M
|
|
0.5-2
|
203.0
|
37.0
|
95.0
|
43.0
|
19.0
|
64.0
|
98.0
|
30.0
|
32.0
|
16.0
|
13.0
|
|
5
|
235.0
|
48.0
|
110.0
|
52.0
|
23.0
|
66.0
|
124.9
|
30.0
|
38.0
|
22.0
|
20.0
|
|
10
|
279.0
|
60.0
|
133.0
|
67.0
|
25.0
|
82.0
|
140.0
|
20.0
|
48.0
|
32.0
|
28.0
|
|
20
|
318.0
|
70.0
|
153.0
|
82.5
|
32.0
|
89.0
|
159.0
|
24.0
|
54.0
|
38.0
|
34.0
|
